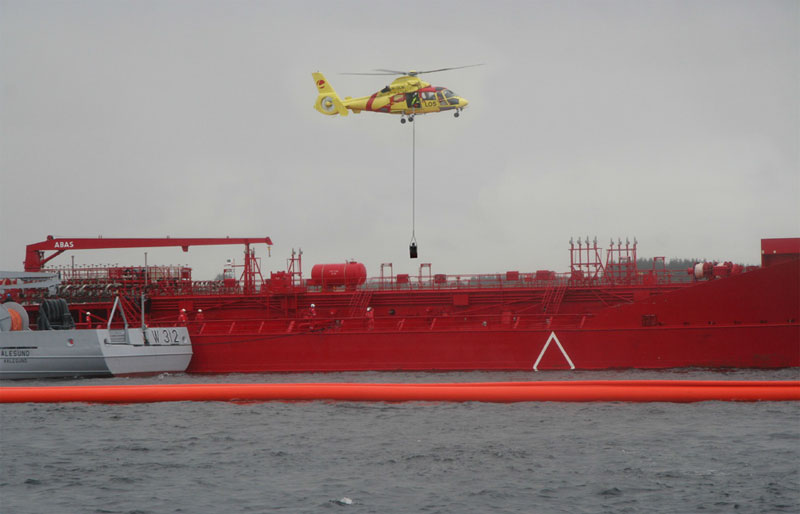

Often helicopter access is the only means to access a distressed vessel. Accordingly, the system is light and suitable for helicopter transport. The system produces no sparks during transportation or use and is self powered in the case of deadship conditions. Additionally, the system can handle a range of fluids from light oils/diesel to heavy fuel oil to water.


Product Description

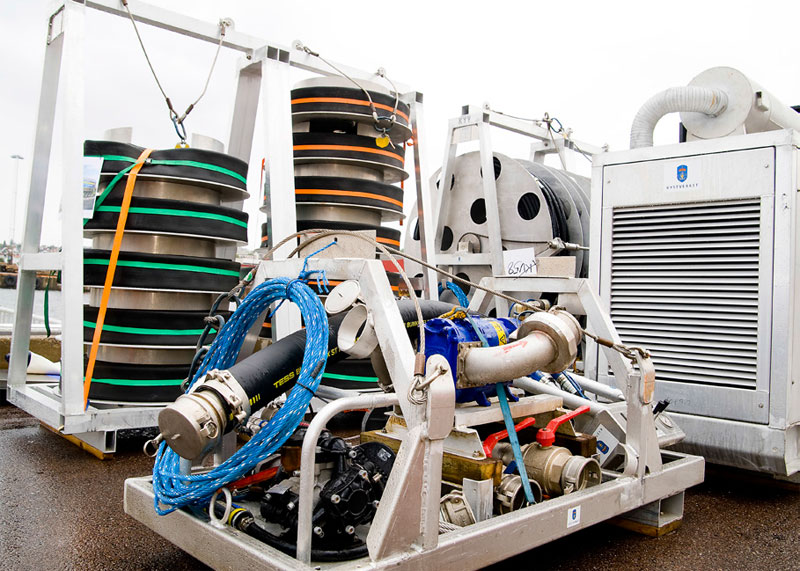

The Emergency Unload System is specially designed for helicopter transport to the vessel.

The system is complete with hoses and hydraulic power unit and uses no electrical components.

Hydraulic power is provided by on onboard 112 kW Cummins diesel engine and provides 200 l/min at 200 bar. and provides 200 l/min and 200 bar.


MAIN FEATURES

  • Emergency Unload System 112 kW
  • 200 l/min
  • 200 bar
  • Prepared for chopper transport
  • No electrical components
  • 3 different types of pumps(submergable, transportation og waterinjection)

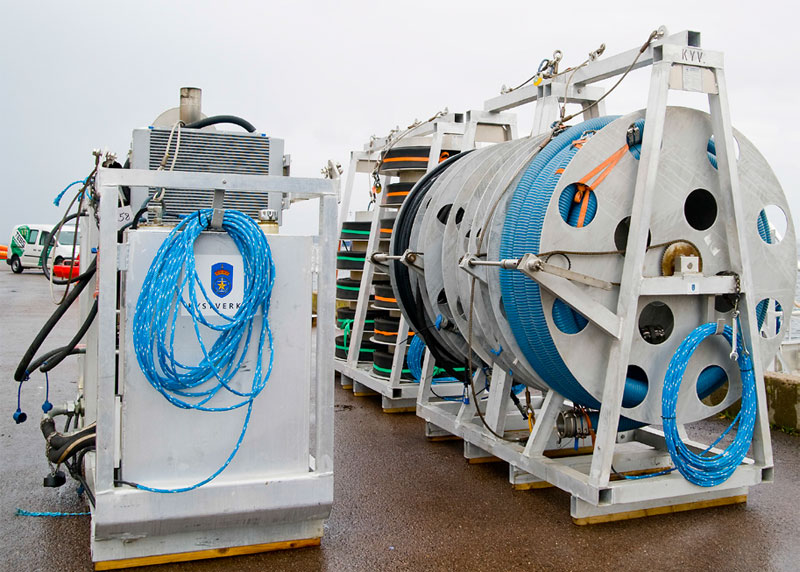

  • Reels with cargohoses and hydraulic hoses
  • Each unit weighs less than 1000 kg
  • Pumps with water injection flanges
